README.OpenSource
1[
2 {
3 "Name": "bindgen",
4 "License": "BSD 3-Clause",
5 "License File": "LICENSE",
6 "Version Number": "v0.64.0",
7 "Owner": "fangting12@huawei.com",
8 "Upstream URL": "https://github.com/rust-lang/rust-bindgen",
9 "Description": "A tool that automatically generates Rust bindings for C and C++ libraries."
10 }
11]
README.md
1[](https://crates.io/crates/bindgen)
2[](https://docs.rs/bindgen/)
3
4# `bindgen`
5
6**`bindgen` automatically generates Rust FFI bindings to C (and some C++) libraries.**
7
8For example, given the C header `doggo.h`:
9
10```c
11typedef struct Doggo {
12 int many;
13 char wow;
14} Doggo;
15
16void eleven_out_of_ten_majestic_af(Doggo* pupper);
17```
18
19`bindgen` produces Rust FFI code allowing you to call into the `doggo` library's
20functions and use its types:
21
22```rust
23/* automatically generated by rust-bindgen 0.99.9 */
24
25#[repr(C)]
26pub struct Doggo {
27 pub many: ::std::os::raw::c_int,
28 pub wow: ::std::os::raw::c_char,
29}
30
31extern "C" {
32 pub fn eleven_out_of_ten_majestic_af(pupper: *mut Doggo);
33}
34```
35
36## Users Guide
37
38[�� Read the `bindgen` users guide here! ��](https://rust-lang.github.io/rust-bindgen)
39
40## MSRV
41
42The minimum supported Rust version is **1.60.0**.
43
44No MSRV bump policy has been established yet, so MSRV may increase in any release.
45
46The MSRV is the minimum Rust version that can be used to *compile* `bindgen`. However, `bindgen` can generate bindings that are compatible with Rust versions below the current MSRV.
47
48## API Reference
49
50[API reference documentation is on docs.rs](https://docs.rs/bindgen)
51
52## Environment Variables
53
54In addition to the [library API](https://docs.rs/bindgen) and [executable command-line API][bindgen-cmdline],
55`bindgen` can be controlled through environment variables.
56
57End-users should set these environment variables to modify `bindgen`'s behavior without modifying the source code of direct consumers of `bindgen`.
58
59- `BINDGEN_EXTRA_CLANG_ARGS`: extra arguments to pass to `clang`
60 - Arguments are whitespace-separated
61 - Use shell-style quoting to pass through whitespace
62 - Examples:
63 - Specify alternate sysroot: `--sysroot=/path/to/sysroot`
64 - Add include search path with spaces: `-I"/path/with spaces"`
65- `BINDGEN_EXTRA_CLANG_ARGS_<TARGET>`: similar to `BINDGEN_EXTRA_CLANG_ARGS`,
66 but used to set per-target arguments to pass to clang. Useful to set system include
67 directories in a target-specific way in cross-compilation environments with multiple targets.
68 Has precedence over `BINDGEN_EXTRA_CLANG_ARGS`.
69
70Additionally, `bindgen` uses `libclang` to parse C and C++ header files.
71To modify how `bindgen` searches for `libclang`, see the [`clang-sys` documentation][clang-sys-env].
72For more details on how `bindgen` uses `libclang`, see the [`bindgen` users guide][bindgen-book-clang].
73
74## Releases
75
76We don't follow a specific release calendar, but if you need a release please
77file an issue requesting that (ping `@emilio` for increased effectiveness).
78
79## Contributing
80
81[See `CONTRIBUTING.md` for hacking on `bindgen`!](./CONTRIBUTING.md)
82
83[bindgen-cmdline]: https://rust-lang.github.io/rust-bindgen/command-line-usage.html
84[clang-sys-env]: https://github.com/KyleMayes/clang-sys#environment-variables
85[bindgen-book-clang]: https://rust-lang.github.io/rust-bindgen/requirements.html#clang
86
README_zh.md
1[](https://crates.io/crates/bindgen)
2[](https://docs.rs/bindgen/)
3
4## 引入背景
5
6`bindgen` 自动生成Rust与C（和一些C++）库的FFI绑定。
7
8例如，给定C头文件`doggo.h`：
9
10```c
11typedef struct Doggo {
12 int many;
13 char wow;
14} Doggo;
15
16void eleven_out_of_ten_majestic_af(Doggo* pupper);
17```
18
19`bindgen`产生Rust FFI代码，允许调用`doggo`库的函数并使用其类型：
20
21```rust
22/* automatically generated by rust-bindgen 0.99.9 */
23
24#[repr(C)]
25pub struct Doggo {
26 pub many: ::std::os::raw::c_int,
27 pub wow: ::std::os::raw::c_char,
28}
29
30extern "C" {
31 pub fn eleven_out_of_ten_majestic_af(pupper: *mut Doggo);
32}
33```
34
35## 目录结构
36bindgen的目录树结构如下：
37```
38.
39├── appveyor.yml
40├── bindgen
41│ ├── BUILD.gn
42│ ├── build.rs
43│ ├── callbacks.rs
44│ ├── Cargo.toml
45│ ├── codegen
46│ ├── deps.rs
47│ ├── extra_assertions.rs
48│ ├── features.rs
49│ ├── ir
50│ ├── lib.rs
51│ ├── LICENSE -> ../LICENSE
52│ ├── log_stubs.rs
53│ ├── parse.rs
54│ ├── regex_set.rs
55│ └── time.rs
56├── bindgen-cli
57│ ├── BUILD.gn
58│ ├── Cargo.toml
59│ ├── LICENSE -> ../LICENSE
60│ ├── main.rs
61│ └── options.rs
62├── bindgen-integration
63│ ├── build.rs
64│ ├── Cargo.toml
65│ ├── cpp
66│ ├── include
67│ └── src
68├── bindgen-tests
69│ ├── build.rs
70│ ├── Cargo.toml
71│ ├── src
72│ └── tests
73├── book
74│ ├── book.toml
75│ └── src
76├── Cargo.lock
77├── Cargo.toml
78├── CHANGELOG.md
79├── ci
80│ ├── assert-no-diff.bat
81│ ├── no-includes.sh
82│ ├── test.bat
83│ └── test.sh
84├── CONTRIBUTING.md
85├── csmith-fuzzing
86│ ├── csmith.h
87│ ├── driver.py
88│ ├── predicate.py
89│ └── README.md
90├── example-graphviz-ir.png
91├── LICENSE
92├── OAT.xml
93├── README.md
94├── README.OpenSource
95├── README_zh.md
96├── releases
97│ ├── friends.sh
98│ └── release-announcement-template.md
99└── rustfmt.toml
100```
101
102## Bindgen工具在OH上的使用指导
103
104### 操作步骤
105下面是一个使用bindgen实现Rust调用C的示例。
106
1071. 在C代码侧，使用头文件lib.h定义两个接口，接口FuncAAddB用来实现两数求和，接口SayHello用来打印字符串。
108
109 ```c
110 #ifndef BUILD_RUST_TESTS_BINDGEN_TEST_LIB_H_
111 #define BUILD_RUST_TESTS_BINDGEN_TEST_LIB_H_
112 #include <stdint.h>
113 #include "build/rust/tests/test_bindgen_test/test_for_hello_world/lib2.h"
114
115 uint32_t FuncAAddB(uint32_t a, uint32_t b);
116 void SayHello(const char *message);
117
118 #endif // BUILD_RUST_TESTS_BINDGEN_TEST_LIB_H_
119 ```
120
121
1222. 在lib.c中添加对两个接口的对应实现。
123
124 ```c
125 #include "build/rust/tests/test_bindgen_test/test_for_hello_world/lib.h"
126 #include <stdint.h>
127 #include <stdio.h>
128
129 void SayHello(const char *message)
130 {
131 printf("This is a test for bindgen hello world:\n");
132 printf("%s\n", message);
133 }
134
135 uint32_t FuncAAddB(uint32_t a, uint32_t b)
136 {
137 printf("This is a test for bindgen of a + b:\n");
138 return a + b;
139 }
140 ```
141
1423. 添加文件main.rs，就可以在Rust侧通过c_ffi实现对C侧的接口调用。注意Rust侧调用的不安全接口需要使用unsafe封装。
143
144 ```rust
145 //! bindgen test for hello world
146 #![allow(clippy::approx_constant)]
147 mod c_ffi {
148 #![allow(dead_code)]
149 #![allow(non_upper_case_globals)]
150 #![allow(non_camel_case_types)]
151 include!(env!("BINDGEN_RS_FILE"));
152 }
153 /// pub fn add_two_numbers_in_c
154 pub fn add_two_numbers_in_c(a: u32, b: u32) -> u32 {
155 unsafe { c_ffi::FuncAAddB(a, b) }
156 }
157
158 use std::ffi::c_char;
159 use std::ffi::CString;
160
161 /// fn main()
162 fn main() {
163 println!("{} + {} = {}", 3, 7, add_two_numbers_in_c(3, 7));
164 let c_str = CString::new("This is a message from C").unwrap();
165 let c_world: *const c_char = c_str.as_ptr() as *const c_char;
166 unsafe {
167 c_ffi::SayHello(c_world);
168 }
169 }
170
171 ```
172
1734. 添加构建文件BUILD.gn，建立Rust模块对C模块的依赖。
174
175 ```GN
176 import("//build/ohos.gni")
177
178 ohos_shared_library("c_lib") {
179 sources = [ "lib.c" ]
180 defines = [ "COMPONENT_IMPLEMENTATION" ]
181 }
182
183 rust_bindgen("c_lib_bindgen") {
184 header = "lib.h"
185 }
186
187 ohos_rust_executable("bindgen_test") {
188 deps = [ ":c_lib" ]
189 deps += [ ":c_lib_bindgen" ]
190 sources = [ "main.rs" ]
191 bindgen_output = get_target_outputs(":c_lib_bindgen")
192 inputs = bindgen_output
193 rustenv = [ "BINDGEN_RS_FILE=" + rebase_path(bindgen_output[0]) ]
194 crate_root = "main.rs"
195 }
196 ```
197

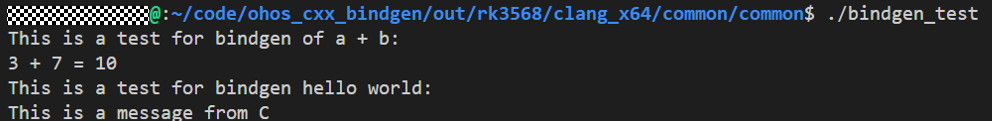

198**调测验证**
199
200
201
202## MSRV
203
204Minimum support Rust版本是**1.60.0**。
205
206目前还没有制定MSRV提升政策，所以MSRV可能会在任何版本中增加。
207
208MSRV是可用于编译`bindgen`的Minimum Rust版本。`bindgen`可以生成与低于当前MSRV的Rust版本兼容的绑定。
209
210## API参考
211
212[API参考文档在docs.rs上](https://docs.rs/bindgen)
213
214## 开发者贡献
215
216在使用该工具的过程中有任何问题欢迎开发者在社区issue中反馈。
217
218<br>
219
220
221
